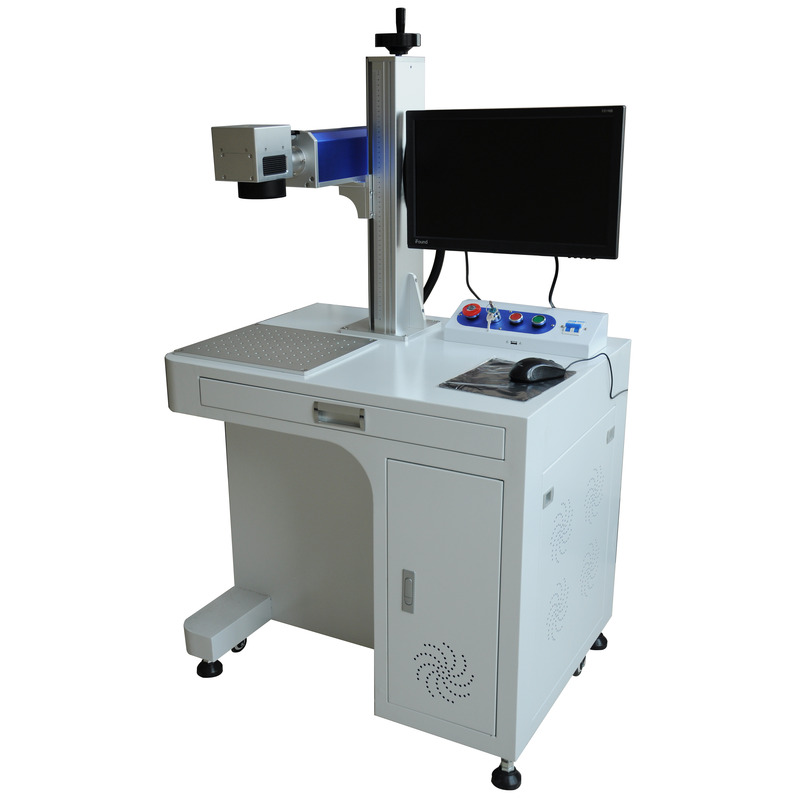

30W Laser Marking Machine Metal Laser Tool Engraving Machines Sisma Laser Marking Machine

1 Set
MOQ
$2,550.00(1 - 2 Sets) $2,400.00(>=3 Sets)
Precio
30W Laser Marking Machine Metal Laser Tool Engraving Machines Sisma Laser Marking Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Application: Laser Marking
Working Accuracy: 0.01
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type: Raycus
Condition: New
CNC or Not: No
Cooling Mode: Air Cooling
Control Software: Top brand EZ card
Laser Source Brand: Raycus
Control System Brand: EZCAD
Weight (KG): 90 KG
Key Selling Points: Long Service Life
Warranty: 2 years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marking Area: 200mm*200mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: laser source
Product name: sisma laser marking machine
Product Keywords: Easy operate
Working area: 110*110mm /175*175mm/ 200*200mm
Applicable Material: Metal Plastic
Laser Power: 10watt 20watt 30watt 50watt
Laser source: Raycus
Brand: TYLASER sisma laser marking machine
Min Line Width:: 0.017mm
fiber laser marking machine Wavelength:: 1064nm
Laser Repetition Frequency::: 20KHz-80KHz(adjustable)
Certificación: ce
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Marketing Type: New Product 2020
Información básica
Certificación: ce
Pago y Envío Términos
Packaging Details: Fiber laser marking machine 1. Packaging with factory Metal Nameplate; 2. Standard export wooden cases with sponge filled inside for packing protection 3. The Wooden case is fumigation free. Suitable both by sea and by air.
Descripción de producto
Detailed Images
Model :MH-20 MH-30 MH-50
Equipment Features

1. Standard type laser marking machine, 2. Optical Fiber Laser, ecofriendly, easy maintenance 3. Life of the laser can be up to 100000 hours. 4. Easy operation software, compatible with PHOTOSHOP CORELDRAW. AUTOCAD 5 Runs without consumable spare parts, no need maintenance, great for continuous working 6. 3 USB connection, more easy to import files

7.Rational Frame design, comfortable man's feet,make the work easier.
Product Description
Technical parameter
Product name
Wholesale high quality Fiber laser marking machine
Laser power
20w 30w 50w
Certificates
CE and factory quality certificates
Brand
TY LASER
Frequency
20-80 KHZ
Working area
Optional 110*110mm 200*200mm 300*300mmm
Laser wavelength
1064nm
Marking color
Yes (laser art free to share)
Marking depth
0-2mm(according to the material)
Cooling system
air cooling way
Waranty
24 months
Minimum line width
0.01mm
Repetition precision
+0.001mm
Beam quality
M2:1.5
Marking speed
7000mm/s -12000mm/s
Power supply
220v 50hkz 15A
Marking minimal character
0.15*0.15mm
Scanning head
High speed scanning galvanometer
Working condition
Humidity 5-75% ,free of condensed water
Marking format
AL DXF PLT SDT BMP JPG JPEG GIF TGA PNG TIF
Application
Jewelry, Keyboards of cell phone, Autoparts,Electronic components, Electronicappliance,Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipments Hardware tools Knife Glasses. Clock Cooker.

Material: Metals: Gold, silver, copper, alloy aluminum steel, stainless steel all kinds of metal material Non-metal: Plastic, PVC, Acrylic, wood with layer etc
Apply industries
Electronic components :
reststance,capacitance,chips,printed circuit boards,computer keyboard etc.
Apparatus and  meter:
panel board,nameplats,panel signs,precision equipment etc.
Hardware tools:
Knives,tools,measuring tools,cutting tools etc.
Mechanical parts :
pintons,bearings,gears,shafts,clutch,standard parts,motors,etc.
Daily necessities :
cosmetics,labels,handicrafts,zipper,key holder,sanitary ware,eyewear,Led lights etc.
Digital elecronic :
computer,laptop,digital camera,mobile phone and accessories etc,
Jewelry:
rings,necklace,earrings,gold,silver,etc.
Mechical:
medical device,surgical instruments,medical packing etc.
Packing:
dishware,food,beverages,smoking and alcohol,plastic packing bag etc.
Marking material
Metals：
gold,silver,brass,aluminium, steel,stainless steel,iron,Iitanium,carbon steel,mild steel,spring steel,copper,magnesium,zinic,gavanized sheet, rare metal and alloy steel,special surface streatment(aluminum anodized plating surface,surface oxygen breaking of aluminum and magnesium alloy) etc.
Nonmetals ：
Rubber,resin,nylon,plastic(PET,HDPE,PP,ABS,PC,PPS,PVC) makrolon etc.
Sample display
Company Introduction
Wuhan Maohe Tianyu Laser Equipment Co., Ltd.is  the leading manufacturer of quality industrial marking equipment. With 15 years factory experience .We are committed to improving the quality of products and services by providing high quality and cost effective products that meet the needs of our customers. We are professional produce laser marking machines, welding machine ,laser cutting machine and pneumatic marking machines

Company purpose

 1*Via quality and service to satisfy customer and guarantee the customer benefit maximization.

2*Profeesional laser marking machine &welding machine production

3*To provide customers with the most cost-effective laser solutions
Transcation Details
Shipping&Payment
FAQ
Q: What's the package
A: We have 3 layers package For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking For the inside layer, the machine is covered by thickening plastic bag for waterproof

Q: Will  the package damaged during transportation?
A:Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide, So please don' t worry, you will receive the parcel in good condition

Q: How to Install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user s manual along with the machine. 95% customers can learn by themselves

Q: How can I do If the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you

Our service

1. 2 year guarantee for main machine(People damaged are charged

2. Full technical support by e-mail, call and video

3. Lifelong maintenance and spare parts supply

4. Free design of fixtures as customers required

5. Free training installation and operation for the staffs

How to protect my order?

Trade Assurance is a free payment protection service for buyers The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality(optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount agreed between you and the supplier. called the Trade Assurance Order Amount.
Packing picture

Tylaser  unique
exporting satndard wooden case for bird ring laser marking machine

10000+ customer's choice.Trustworthy factory

Mature after-sale system, provide you excellent laser art and technical support
