2021 new advertising company digital printting machine UV printer for pcb ink discharger filter

Why we still need 8 color UV Printer? It's much expensive compare with 6 Color Printer

Advantage of this 8 color DX7 Head UV Printer:

1.Totally new design inside,different structure than simple modify version, less maintenance problem and error

2.Automatic adsorption platform,Easy to place object for printing

3.More durable sprinklers, the service life is as long as 8-18 months

4.Higher print quality, 30% higher than 6-color printer,better details,no Horizontal stripes

5.Faster printing speed, for print white, the speed is more than 2.5 times that the 6-color machine, and for color printing,the speed is more than 1.5 times that of the 6-color machine

6.Build with touch screen, more smart and full automatic operation with one simple touch

The Advantages of uv printing machine:

UV Printer Can print white color,for there have white uv ink,but if you use eco solvent ink with flatbed printer,there are no white ink,so flatbed printer can’t print white color(except when we use textile ink and print on textile,for there have white textile ink)

UV Printer can print on any materials directly without coating,no need pretreatment,but for flatbed printer,we need spray coating before printing for almost materials,or the image will be removed very easy by scratch

UV Printer can print out image with Embossed Effect,but flatbed printer can’t

After Printing,uv ink dry immediately,but flatbed printer can’t

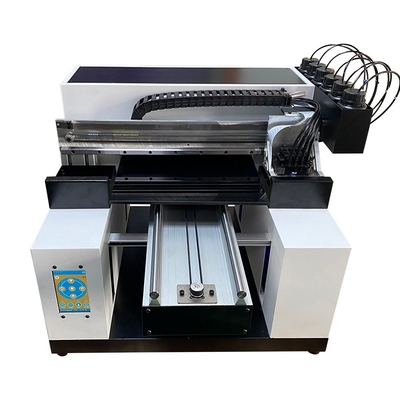

Model Number :GF3385

Ink Type:LED UV-Ink

Printer Head:EPSON DX7 8 Colour W Printer Head

Ink Color:C M Y K + W W W W

Print Size:28*50CM Size (Customize to 56cm if needed)

Print Thickness:0-90mm(Customize to 25cm height)

Advantage:High Resolution,Precise Positioning,Automatic adjustment for print height

Print Technology:LED UV Lamp Cured,Smart Bidirectional Printing,Auto Nozzle checking,AutoNozzles cleaning system,Smart size of inkdroplet

Protection: Smart Three-Level Grade Protection System For Printer Head

Height Adjustment:Electronic control by Touch Screen

Print Speed:About 138 seconds/A3 Size Photo Image

Print Weight :0-20KG

Ink Assistant:Directly insert ink tube to ink bottle

Tray:Glass Tray(Tray Size 33*60CM)

Working Condition :Temperature:20℃-30℃,Humidity40%-70%

Print Software:Acro RIP(Windows 2000,Windows XP,Win 7,Vista System,8,10)

Connection:USB2.0/1.1/3.0 Port

Power Require:110-240V,Around 60W

Image Format: TIFF(RGB&CMYK),BMP,PDF,EPS,JPEG,JPG Etc.

Computer Sys:Windows XP,Vista,Windows 2000/2003/7/8/10

Printer Weight: 60kg(78KG with package)

Package Size:80*72*67CM
